Q’STRAINT Securement Systems

Q’Straint offers a variety of securement systems including wheelchair retractors, tie downs, and docking systems. All are designed with the wheelchair user’s safety in mind while driving and riding passenger in a vehicle. Q’Straint has produced the most effective, safe, and reliable solutions available on the market today and the Tim’s Trim team is trained and ready to help you select the best product for your needs.

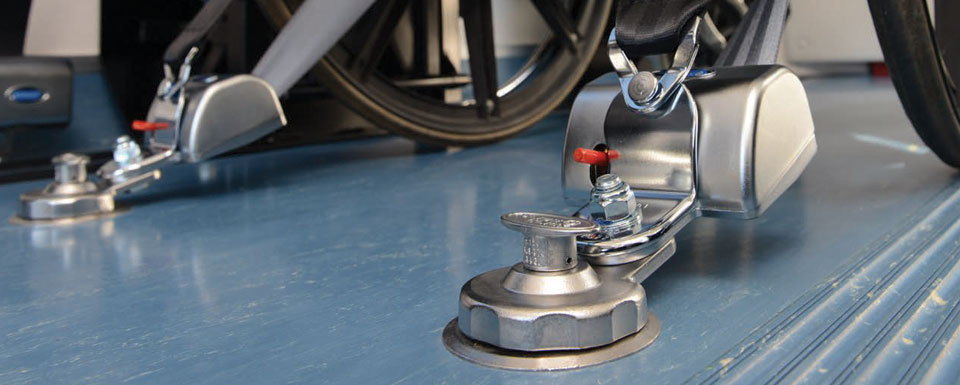

Q’Straint – QRT Deluxe Retractor

The retractor that changed the industry, the QRT Deluxe was the first self-locking, self-tensioning retractable system and is now the industry standard.

  • Dual Tightening Knobs – Provides additional tensioning if needed
  • Automatic, Self-Locking – Allows easy, one-handed hook-up of wheelchairs
  • Self-Tensioning – No manual tensioning required. Retractors automatically take up ‘slack’ to ensure wheelchair passenger is always secured
  • Positive Lock Indicator – Patented feature clearly indicates when fitting is locked in anchorage (L-track application only)
  • Interchangeable – Eliminates confusion; no right, left, front or rear locations
  • Low Profile & Compact – No mounting bracket allows retractors to fit under most footrests
  • Accommodates Larger Wheelchairs – Reduced overall retractor length leaves more room for wheelchairs
  • Universal Design – Accommodates virtually all wheelchair designs, including scooters
  • Durable – Constructed from hardened steel and coated in zinc for maximum corrosion resistance
  • J-Hook – Reduces twisting of belts and ensures proper securement with a quarter turn accommodating virtually all wheelchair designs
  • Foot Release Lever – Easy release eliminates the need to bend down

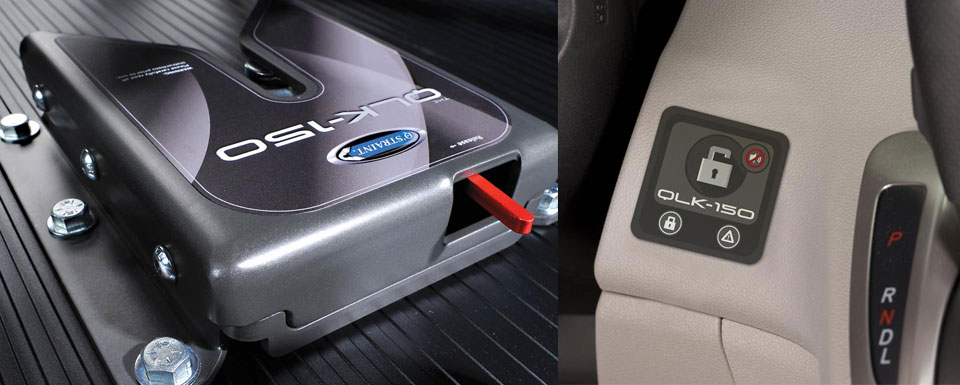

Q’Straint – QLK-150 Wheelchair Docking System

The QLK-150 wheelchair docking system is the next step in independent wheelchair securement (also known as powered lockdowns or tie-downs). It is the perfect solution for those looking to drive their own vehicle or want to quickly secure their own wheelchair using a single point system.

  • Extensive Crash Testing – First and only system tested to higher WC/19 wheelchair loads; and also the only system tested Forward, Rearward and Sideways
  • Lowest/Highest Clearance – Optional base mounts allow for the docking system to be mounted from 1.5″ (38mm) to 4″ (100mm)
  • Tapered Channel – Helps smoothly guide users into place
  • Flush Surface – Eliminates “snags” and gives users an immediate 3/16″ (5mm) of additional bolt clearance
  • Slim & Flexible Dash Control – Compact design has a much larger touch area and features imbedded LED indicators showing system status
  • Over-Torque Protection – Prevents “locking up” if internal hardware is over-torqued
